Inspired by recent design trends for slim framed doors, the Barwon Aluminium Door Suite has been developed with an overall thickness of 38mm, delivering a sleek finish to both commercial and residential settings.

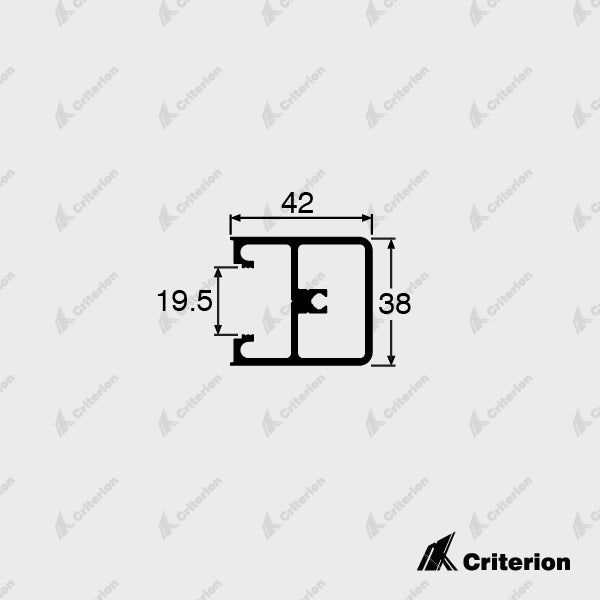

With a strong integral structure, the Barwon Door Suite allows for glass up to 12.8mm thick and complements Criterion's range of partition systems. This new range features a variety of frame options including a 42mm slimline stile with a lockable option.
Available for a wide variety of applications including hinged, sliding, pivot and bi-fold configurations, doors can be manufactured to your specification in either powdercoat or anodise finishes.
Maximum door size using 6.38mm glass is 2700mm x 1050mm (depending on hinges and rollers used)
Maximum door size using 10.38mm glass is 3000mm x 2000mm (depending on hinges and rollers used)
Maximum door size using 12.38mm glass is 3000mm x 1900mm (depending on hinges and rollers used)
